Our LN2-Hose is a high-tech product developed for a safe LN2 handling in NMR laboratories.

Compared to conventional solutions it offers:

Increased safety through minimized risk of burning
Optimized efficiency through less filling losses
Reducing NMR downtime and thus better user experience

How?
Double safety from sudden rupture due to 3 hoses, outer protective hose with glass fiber reinforcement

Curved hose end to prevent unintentional kinking

Superisolation without vacuum

Technical data:

Length: 2200 mm
Inner diameter: 8 mm
Outer diameter: 26 mm
Wall thickness inner hose: 1 mm
Weight of the hose: 980g
Working pressure: max. 1 bar

Temperature range: -200°C bis +150°C
Service life: 5 years

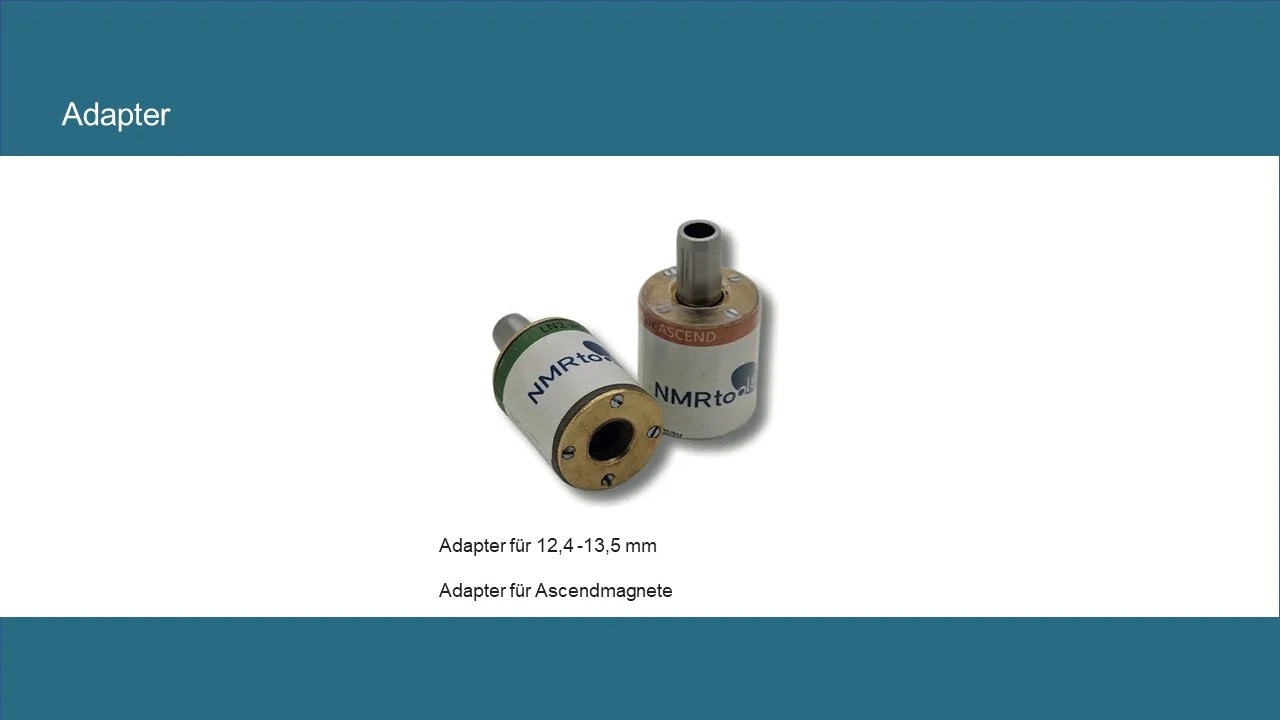

Hose outlet consists of a Ptfe slip-on nozzle with 12.5 mm; use of an adapter is recommended

NMRtools LN2-Hose is made in Germany.

What users say:

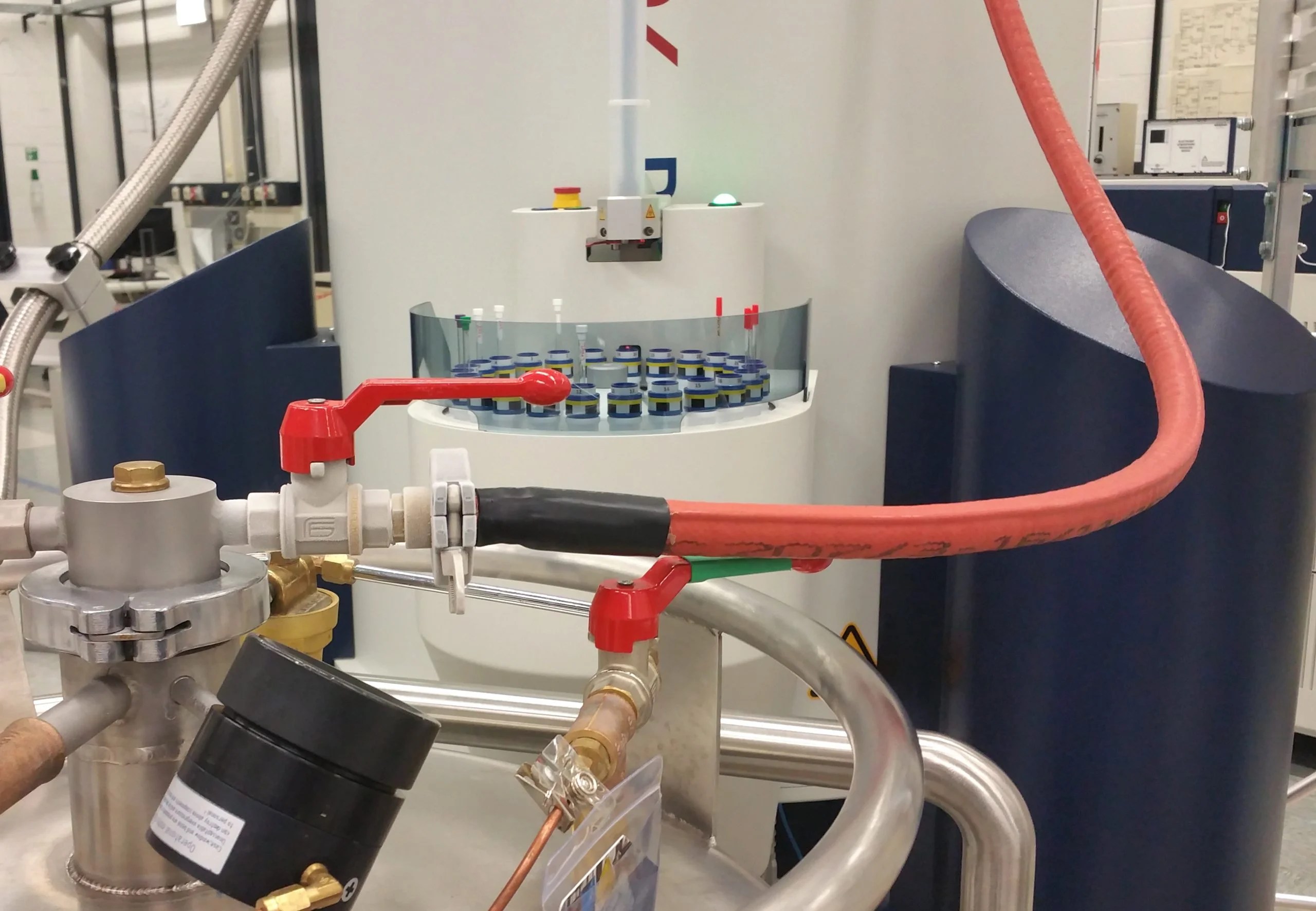

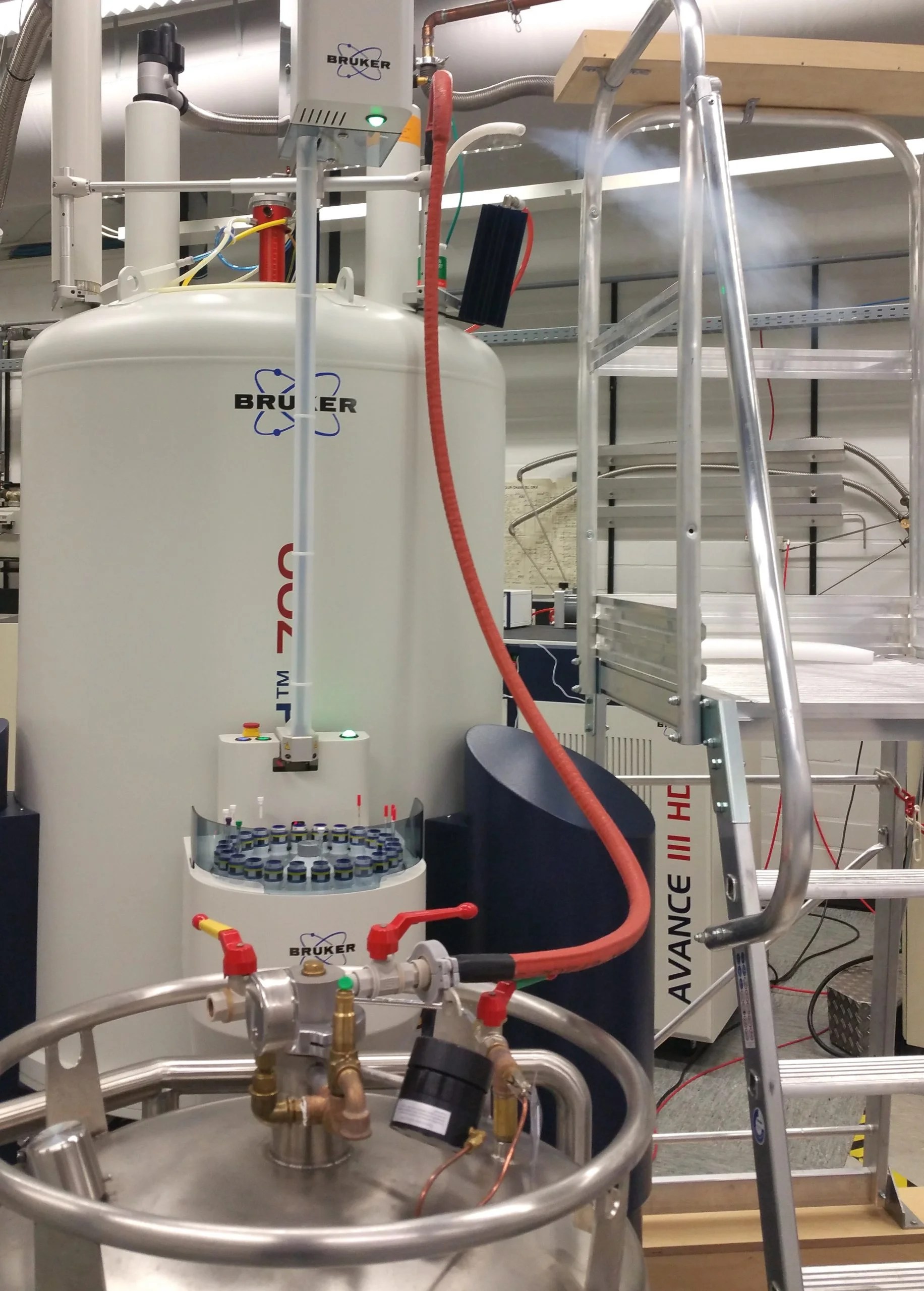

“The NMR service facility of the Faculty of Chemistry and Biochemistry at the Ruhr University Bochum, Germany, has successfully introduced the NMRtools LN2-Hose in 2019/2020.



We are extremely pleased with its performance as it provides a high level of handling security as well as a much higher insulation than conventional transfer lines. By using the much better insulated LN2-Hose we have been able to prevent about 20% N2 loss during magnet filling.



That is why we have now purchased a total of three of NMRtools LN2-Hoses to expedite N2 filling.



We can only highly recommend this product as – in our hands – it has made a tremendous positive impact on improving the NMR service procedures by reducing NMR downtime and thus better user experience.”



Prof. Dr. Raphael Stoll
